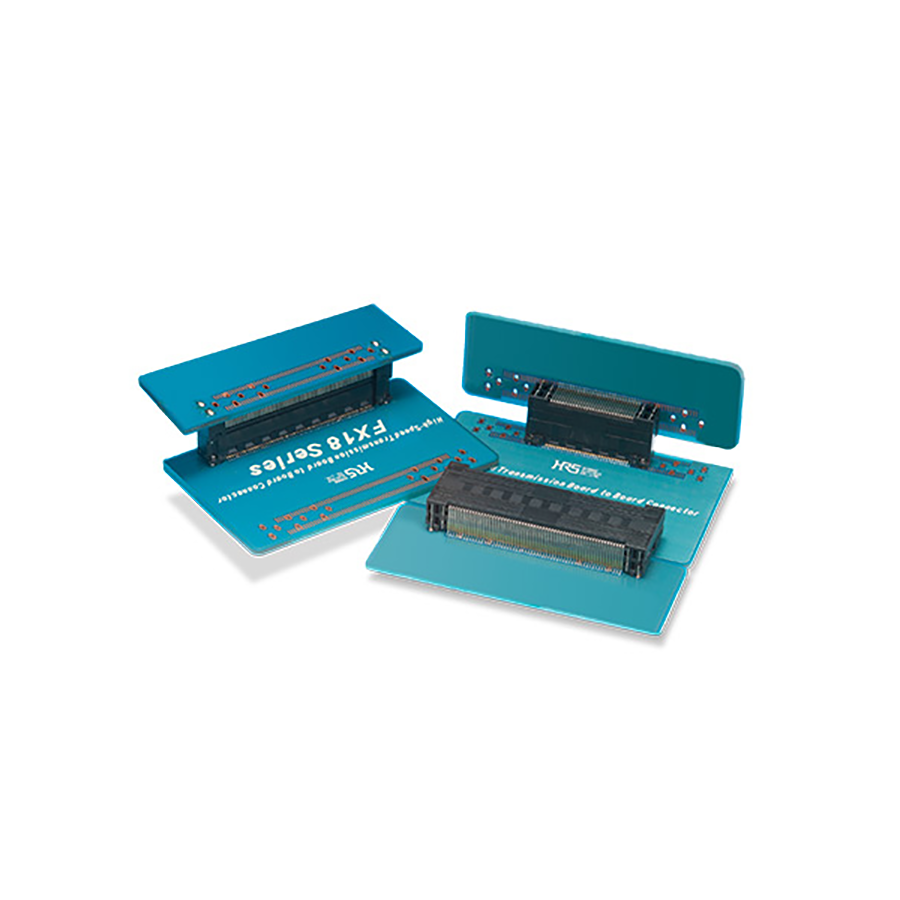

FX18-60S-0.8SV15
Manufacturer:
Hirose Electric
Mfr.Part #:
FX18-60S-0.8SV15
Datasheet:
Description:
Board to Board Connectors SMD/SMT Receptacle Number of Positions:60 Number of Rows:2 Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 35.9 mm |
| Width | 7.8 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -55 °C |
| Height | 11.75 mm |
| Packaging | Tray |
| Voltage Rating | 100 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 800 µm |
| Current Rating | 500 mA |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Gender | Receptacle |
| Number of Contacts | 60 |
| Connector Type | Receptacle |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Housing Material | Polyamide (PA) |
| Contact Resistance | 90 mΩ |
| Housing Color | Black |
| Stack Height | 15 mm |
| Mated Stacking Heights | 25 mm |
| Contact Voltage Rating (AC) | 100 V |
| Contact Pitch | 0.8 mm |
| Mounting Angle | Straight |
Stock: 282
Distributors
pcbx
pcbxUnit Price$4.63714
Ext.Price$4.63714
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.63714 | $4.63714 |
| 10 | $3.85487 | $38.54870 |
| 25 | $3.57959 | $89.48975 |
| 50 | $3.32148 | $166.07400 |
| 100 | $3.08198 | $308.19800 |
| 300 | $2.85974 | $857.92200 |
| 500 | $2.79007 | $1395.03500 |
| 1000 | $2.72210 | $2722.10000 |
